We design and manufacture complete equipment and installation by qualified personnel and latest software. Our area of responsibility includes the planning, design, calculation and construction of:

• pressure tanks and vacuum tanks
• reactors with quick release
• stirrer tanks and process vessels

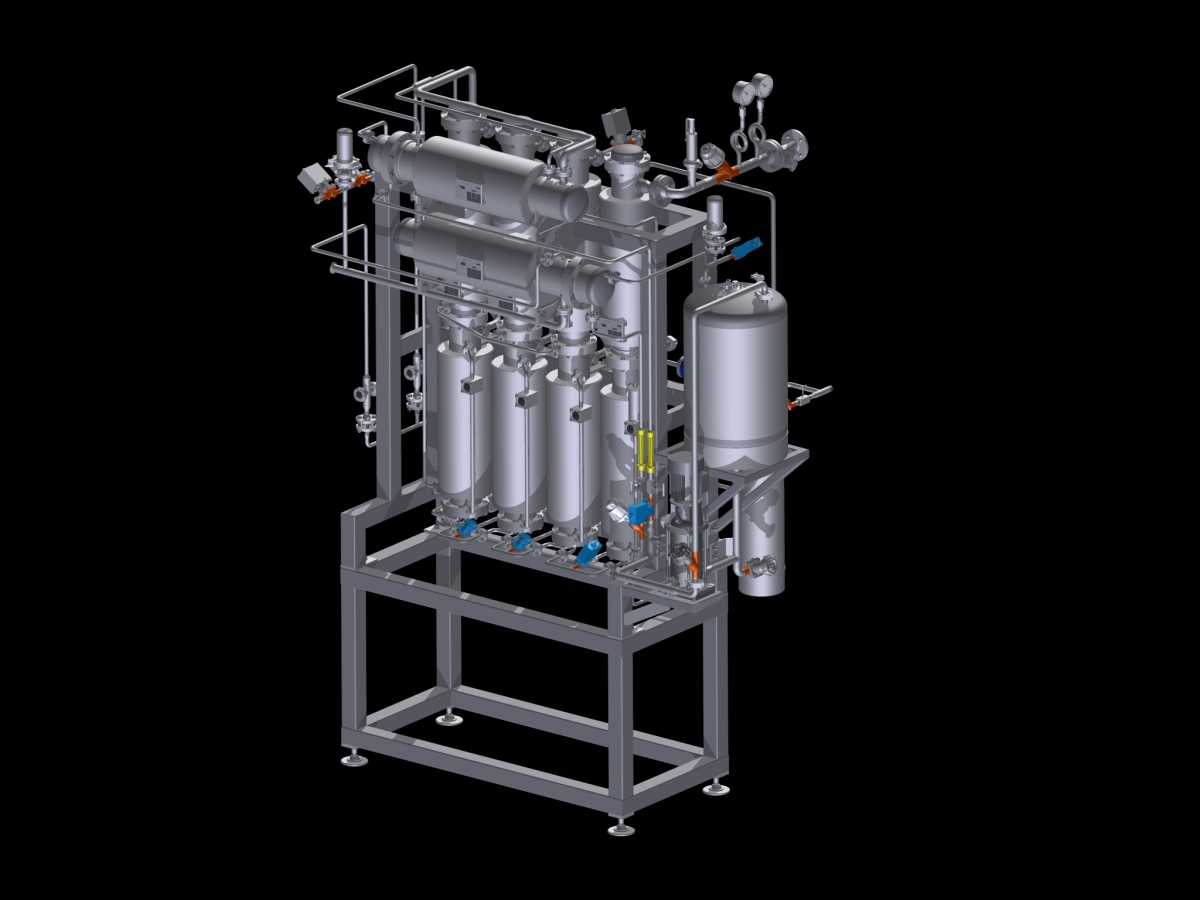

• extraction and distillation plants
• heat exchanger with double floor as pharmaceutical execution
• mixers and dryers
• special equipment and installation (such as combination of engineering equipment, pressure monitors, coating equipment etc.)
• sumps e.g. to WHG
• distillery from the mash preparation to dehydration
• design of piping such as e.g. WFI Ring
• mechanical engineering such as collection bunker with special screw conveyors

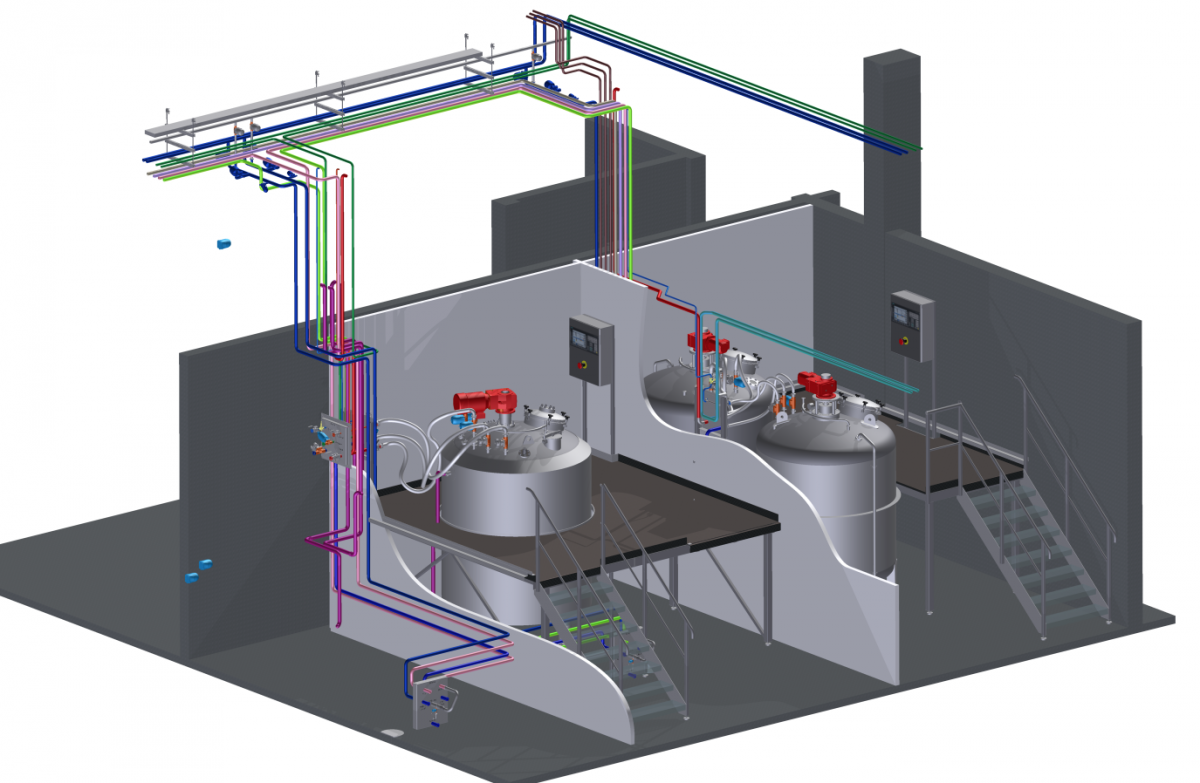

• installation planning of systems including apparatus, stages, pipelines and fittings (layouts: buildings and spatial planning, installation planning: media supply lines, outflows etc.)
• concept creation
• R&I flow diagram (including valve list and dimensioning of pipelines)
• design and construction of special components according to DIN EN 1090

Additional services:

• thermal design of apparatuses
• drafting with Inventor 2020 3D
• participate authorized calculation and design programs according to the technical regulations of AD
• static, eg stability analysis
• project documentation
• process design and optimization of plants and production processes (pharmaceutical and food industry)
• advice or classification regarding water hazard – WHG
• consulting ATEX concept (2014/34/EU)
• safety concept (including risk assessment according to Machinery Directive 2006/42/EC), e.g. rating of old machines

Technical documentation:

• project documentation
• documentation according to Pressure Equipment Directive 2014/68/EU
• documentation for incomplete machines and complete machines in accordance with Machinery Directive 2006/42/EC
• documentation according to ATEX Directive 2014/34/EU
• risk assessment in accordance with the Pressure Equipment Directive, Machinery Directive, ATEX Directive
• Documentation for the stage according to Construction Products Regulation (EU) No. 305/2011/EU and DIN EN 1090
