QUICK RELEASE FASTENERS //

Calculation, design, manufacturing

We calculate, design and manufacture quick-release fasteners for containers, reactors and pressure vessels. Depending on the requirements of the medium or customer, we select the type of sealing or the mechanics of the opening mechanism.

Empl Anlagen determines the safety equipment and specifies it or can procure it.

Acceptance and pre-testing by TÜV Süd or others.

Documentation: manufacturer’s declaration, test and documents, production documents, spare parts, hazard analysis, operating instructions.

We can supply the following sizes: Hand holes or manholes from DN50 to DN800 and container closures up to DN3000.

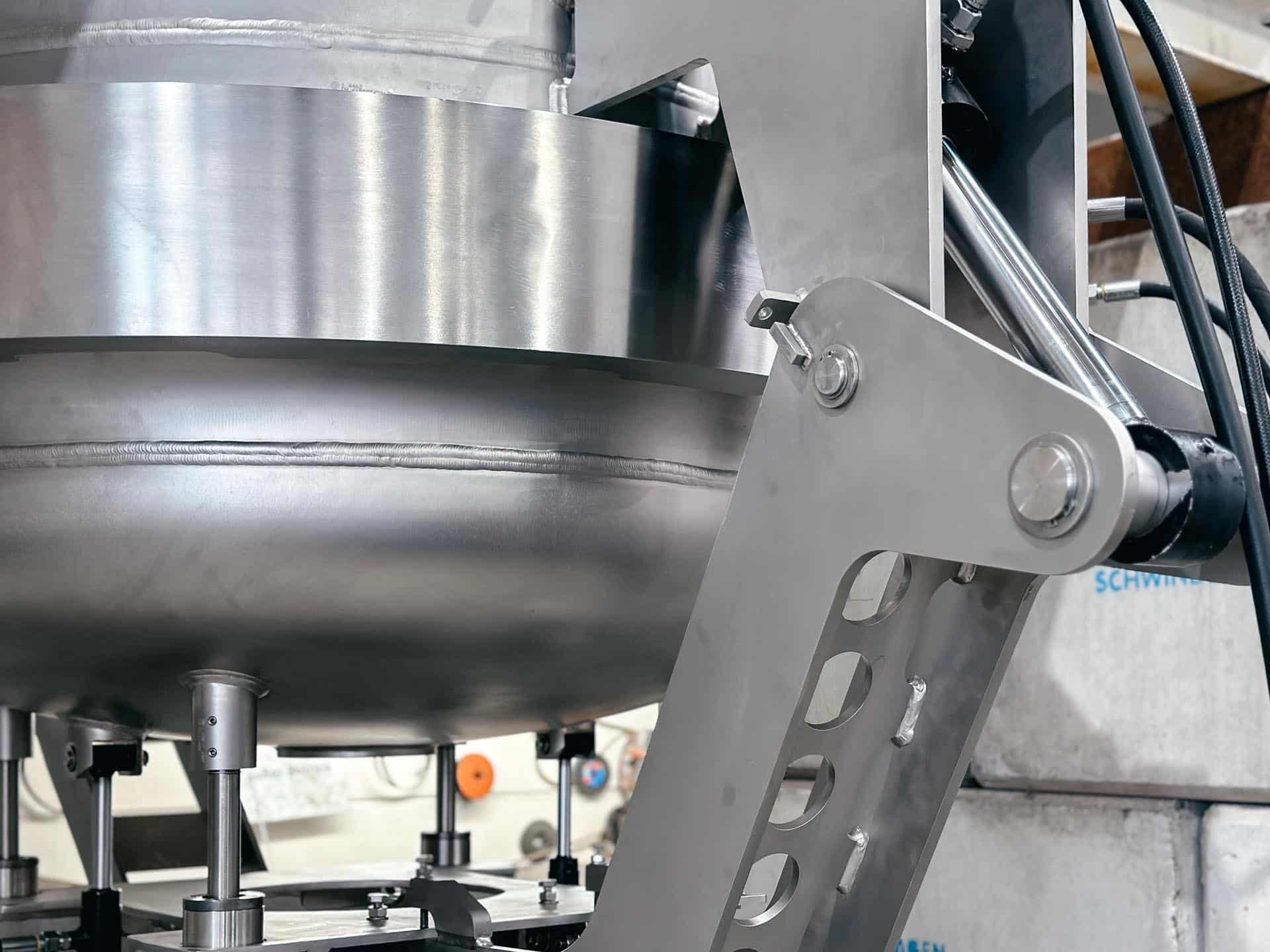

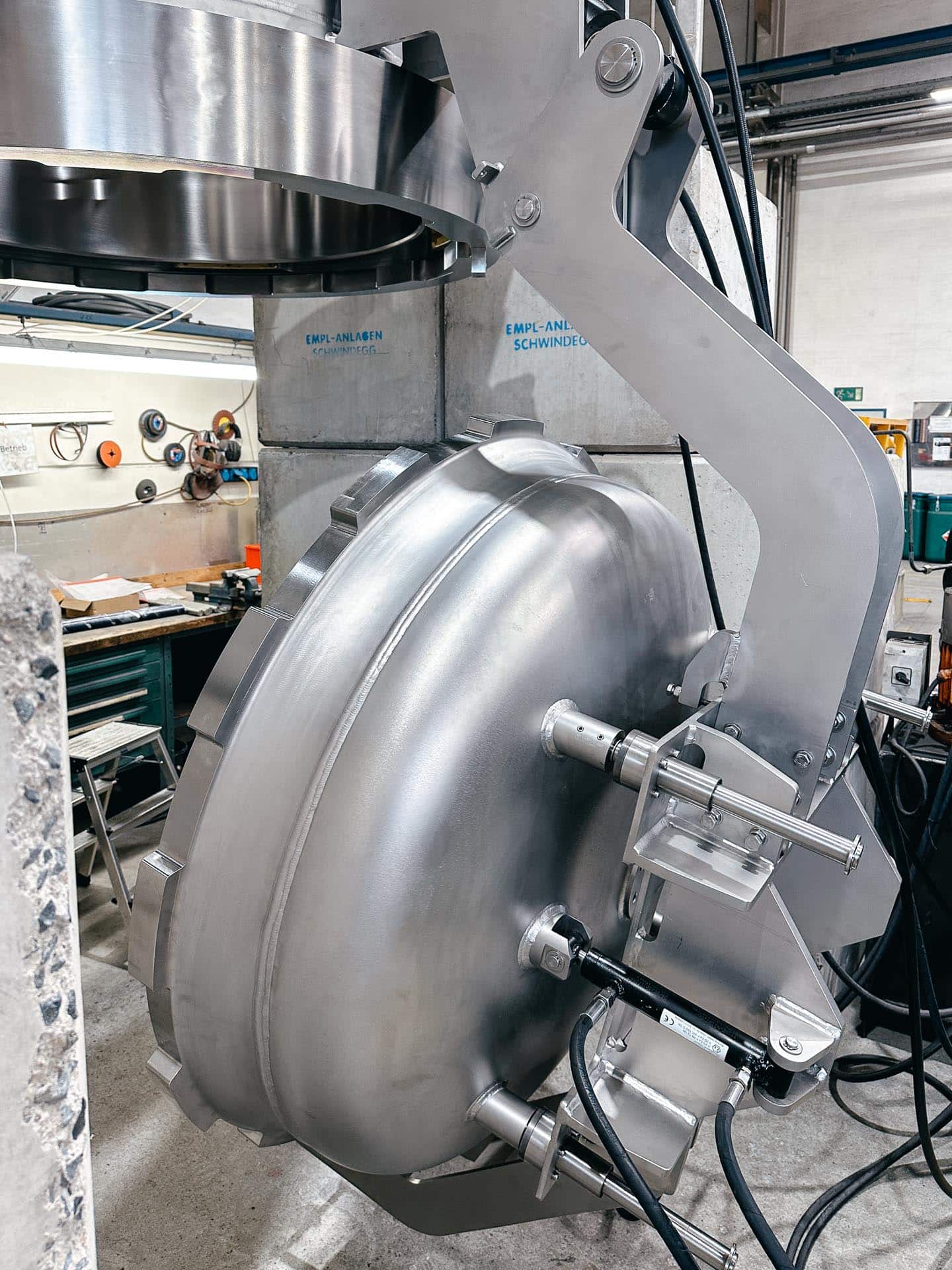

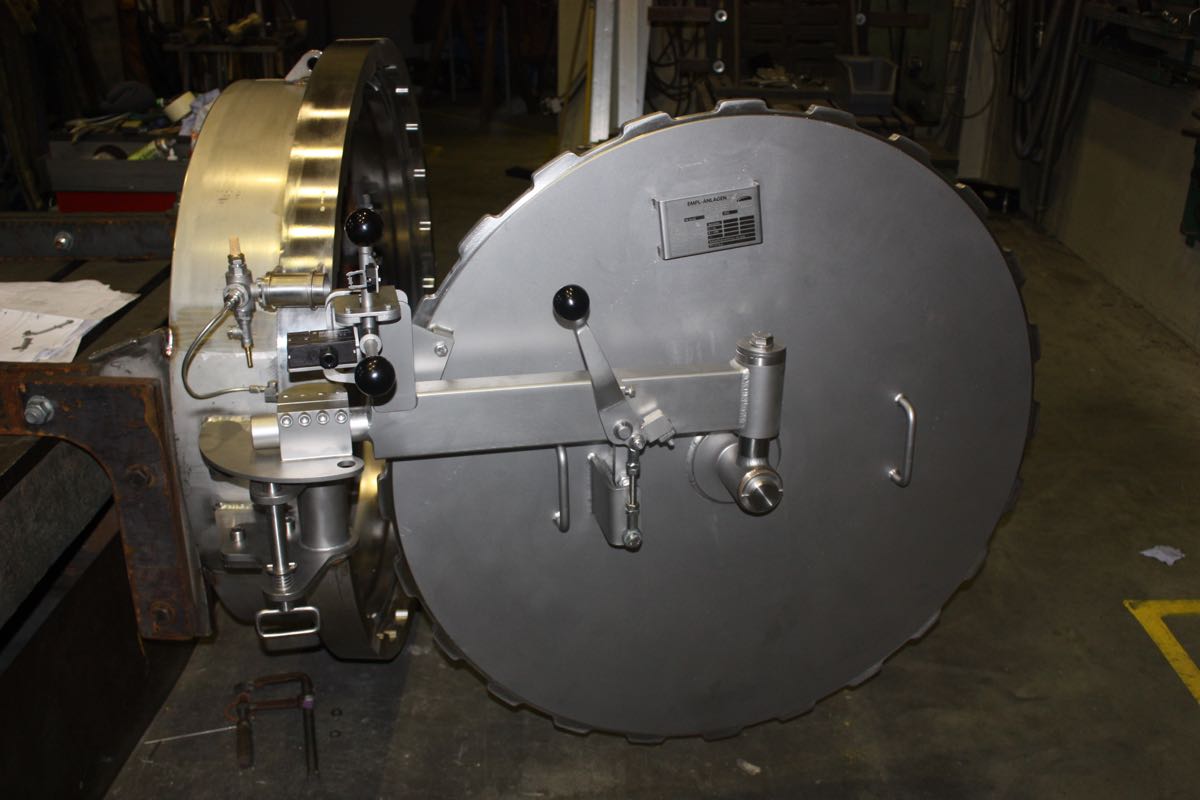

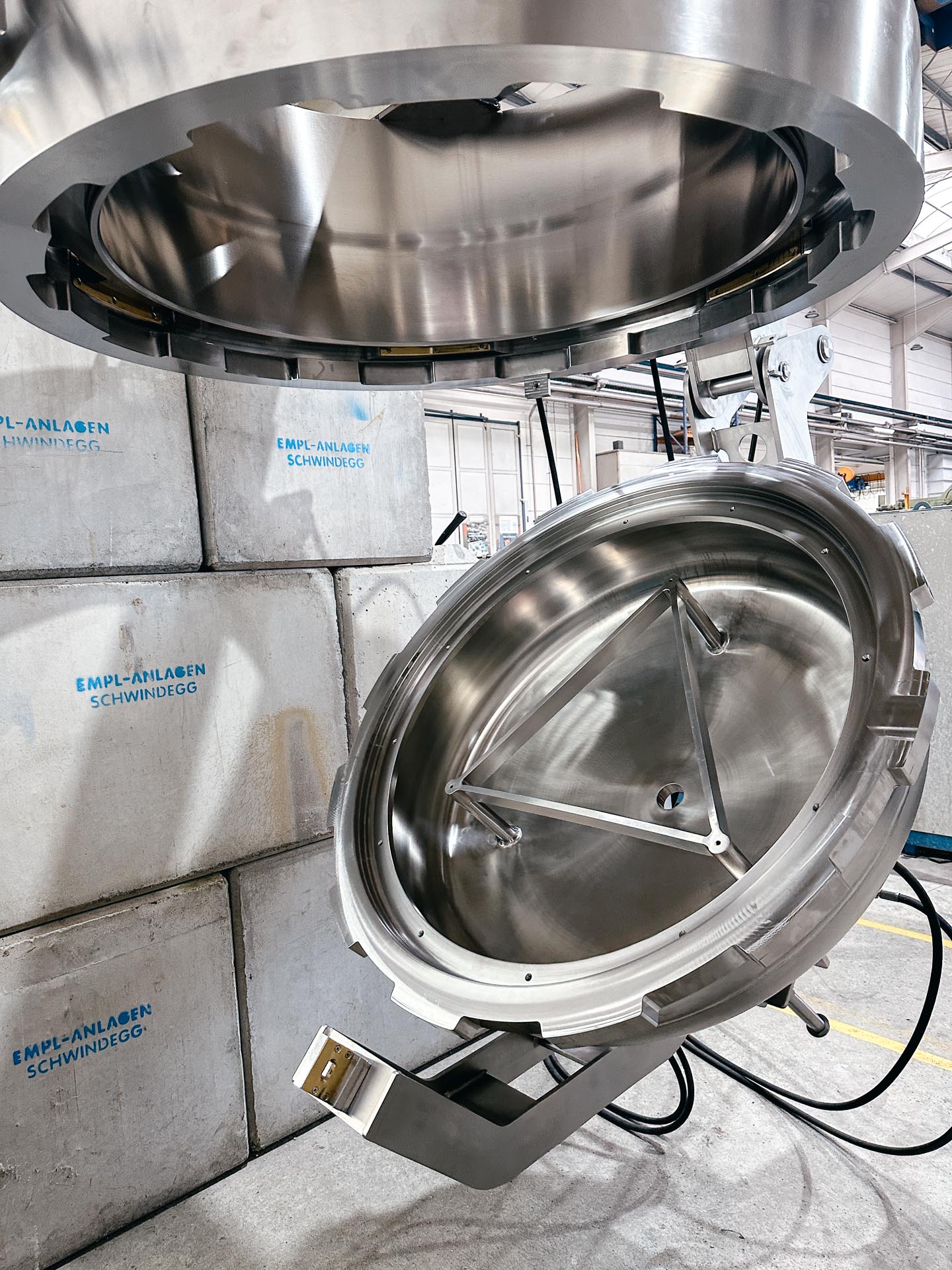

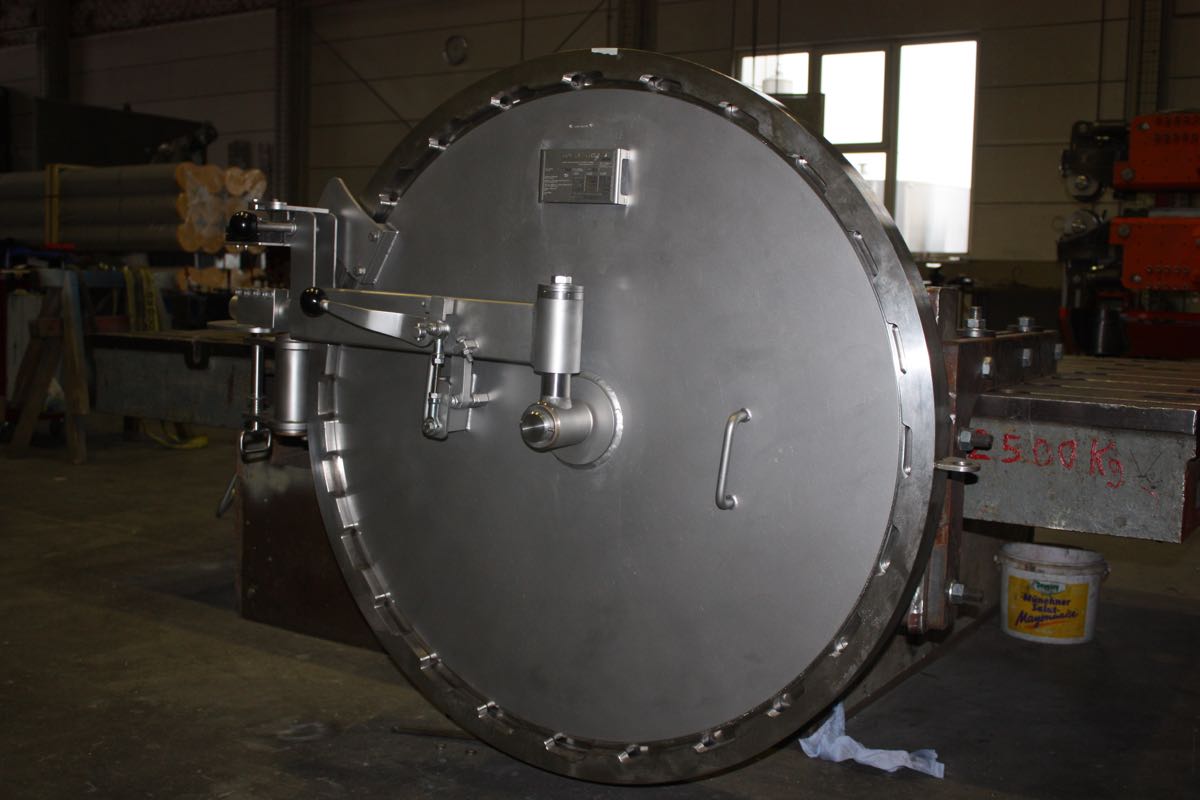

The flange ring is internally toothed, profiled and provided with a sealing groove. The seal type is an inflatable gasket which is pressurized with nitrogen or nitrogen. The cover, corresponding to the flange ring, has a corresponding toothed counterprofile, bayonet-like closable. Swing link with pivot point for holding the cover at the centrally welded trunnion. The rotary mechanism of the cover is to be operated with a hand lever.

The fuse unit consists of a locking pin, a 3-way ball valve for pressurizing the seal and a safety interlock switch. The quick-release fastener was manufactured in accordance with AD2000 information sheet A5 and approved by an expert from TÜV Süd Industrie Service GmbH.

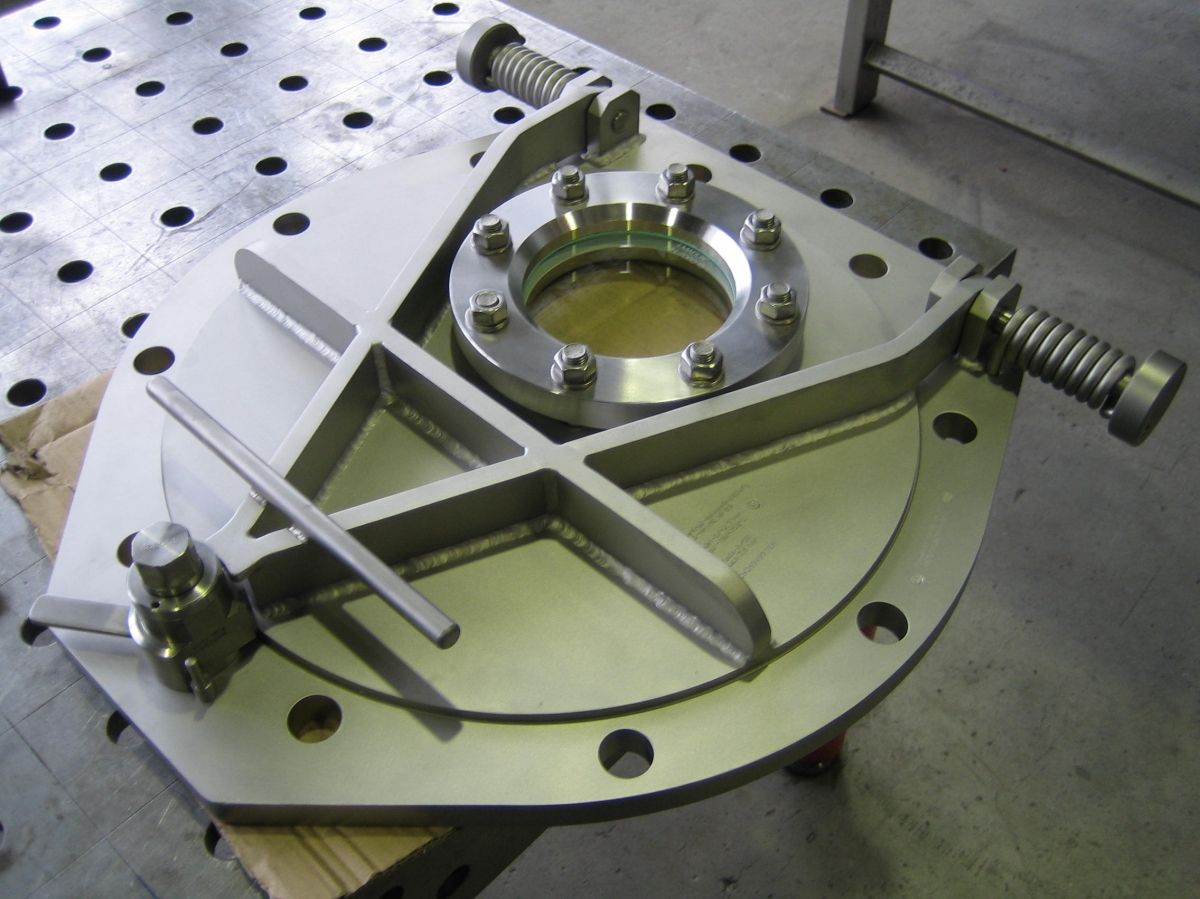

Quick connector DN150 PN50

  • Design data: 0 / + 50 bar
  • Design temperature: 0 / + 250 ° C
  • Load changes 16,000 / 10 years with a pressure fluctuation range of 35 bar and a temperature fluctuation range of 200 ° C
  • Design according to AD2000
  • Suitable for a standard flange DN 150 PN63 according to EN1092-1 DN 150 type 01 / type 11
  • Material 1.4571
  • Use in EX areas

Advantage:

  • Very quick and easy opening of the quick release by simple operation of the key bar
  • No screws and nuts required to open the quick release
  • Maximum security thanks to the key bar, in addition to the pneumatic locking of the key bar and position queries

The design inspection and a final and pressure test were carried out by the TÜV.
